220V/110V/380V Air Compressor

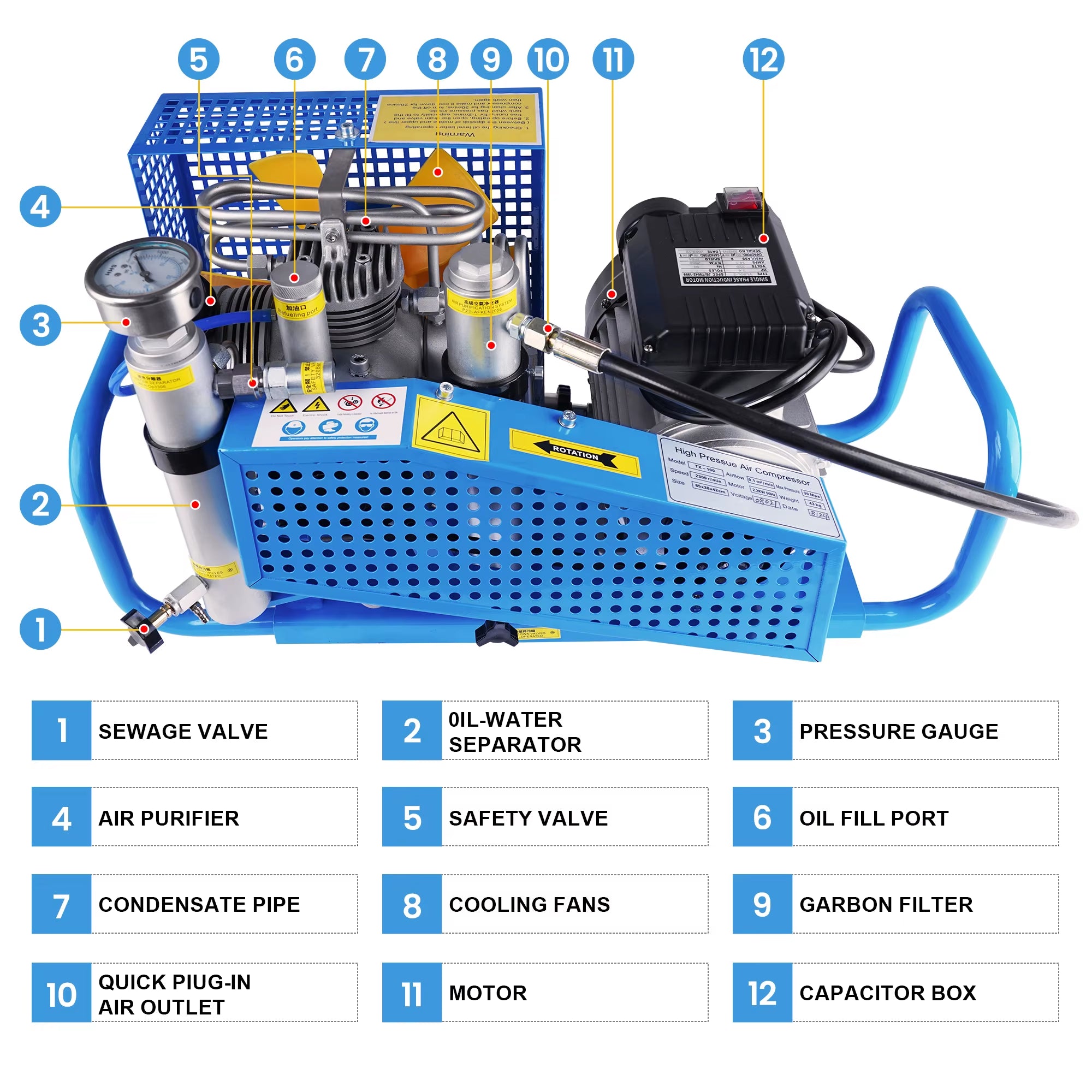

220V/110V/380V Air Compressor is a high-quality unit equipped with four high-pressure cylinders capable of compressing air up to a maximum of 20-30mpa/200-300bar/3000-4500psi. This compressor provides high-quality safe compressed air for human respiratory requirements, meeting the EU EN12021 and GB18435-2001 breathing air standards. It consists of a pump, motor, intake filter, belt, cool fan, oil separator & filter, safety valve, pressure switch, starter, frame, and isolator.

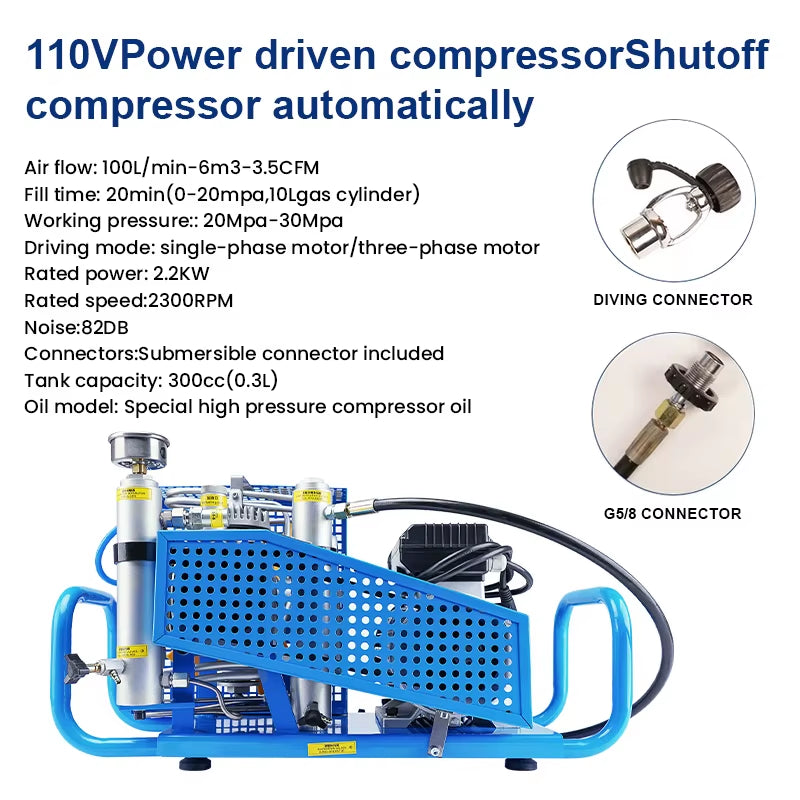

Specifications

• Power Supply: 220V/110V/380V

• Frequency: 50Hz/60Hz

• Power: 2.2kw / 3hp

• Current: 10Amp (Instantaneous starting current: 15A)

• Flow Rate: 100L/min / 3.5cfm

• Maximum Pressure: 20-30mpa/200-300bar/3000-4500psi

• Lubricant Recommendation: ISO grade 100/150

Features

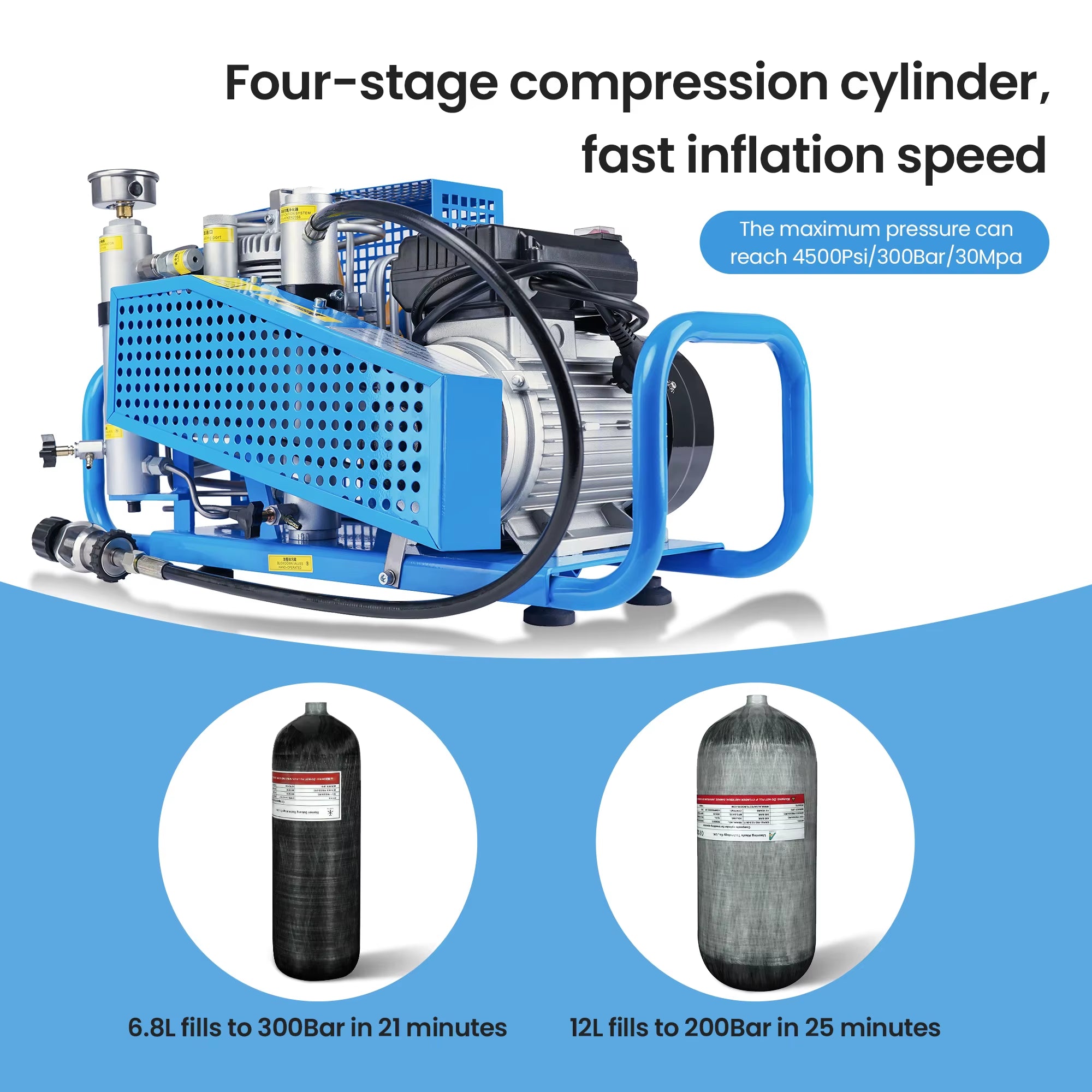

• High Pressure Cylinder: Equipped with four cylinders for maximum compression efficiency.

• Safety Valve: Automatic leaking function after full filling to ensure operator safety.

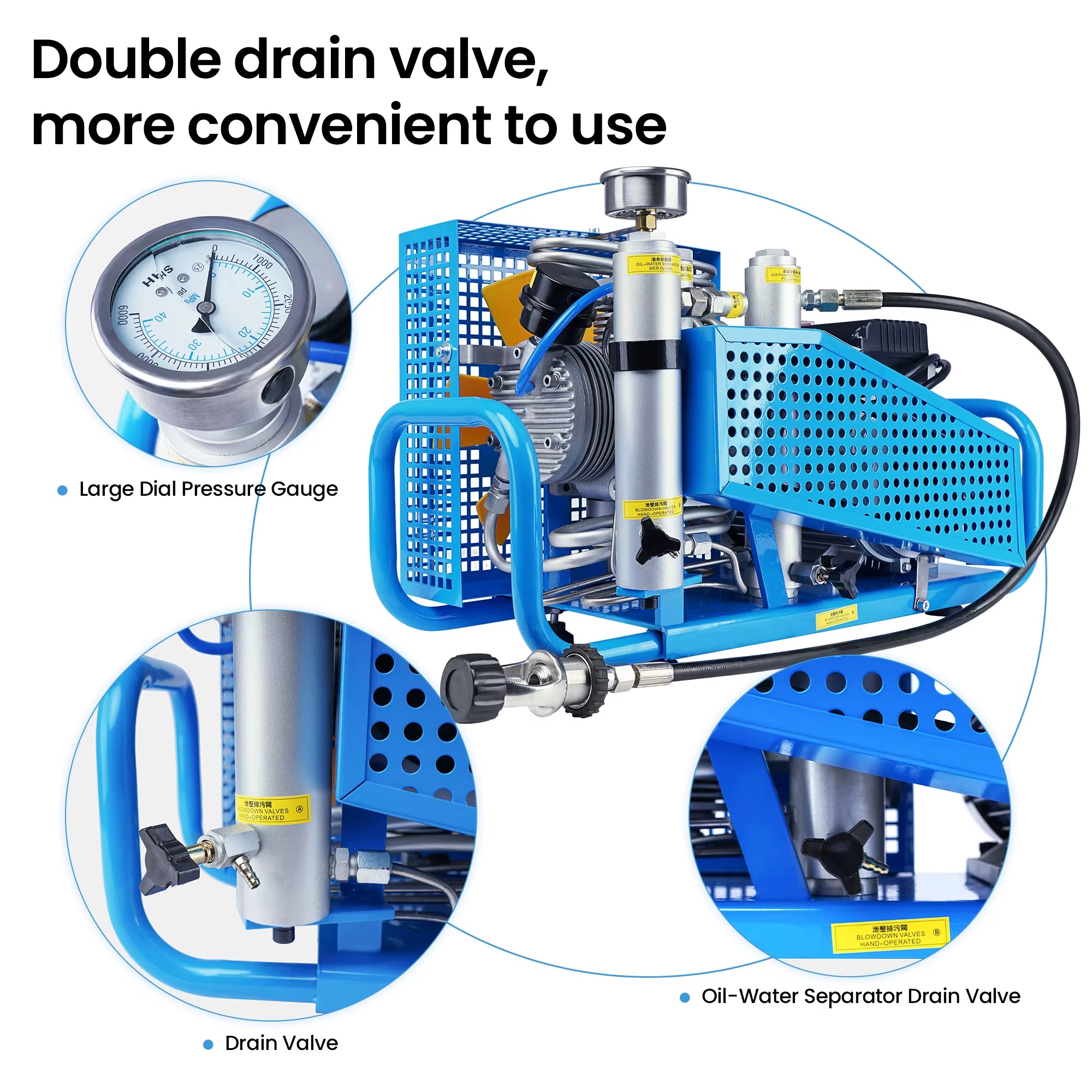

• Pressure Indication: Features gauge pressure indicate for real-time monitoring.

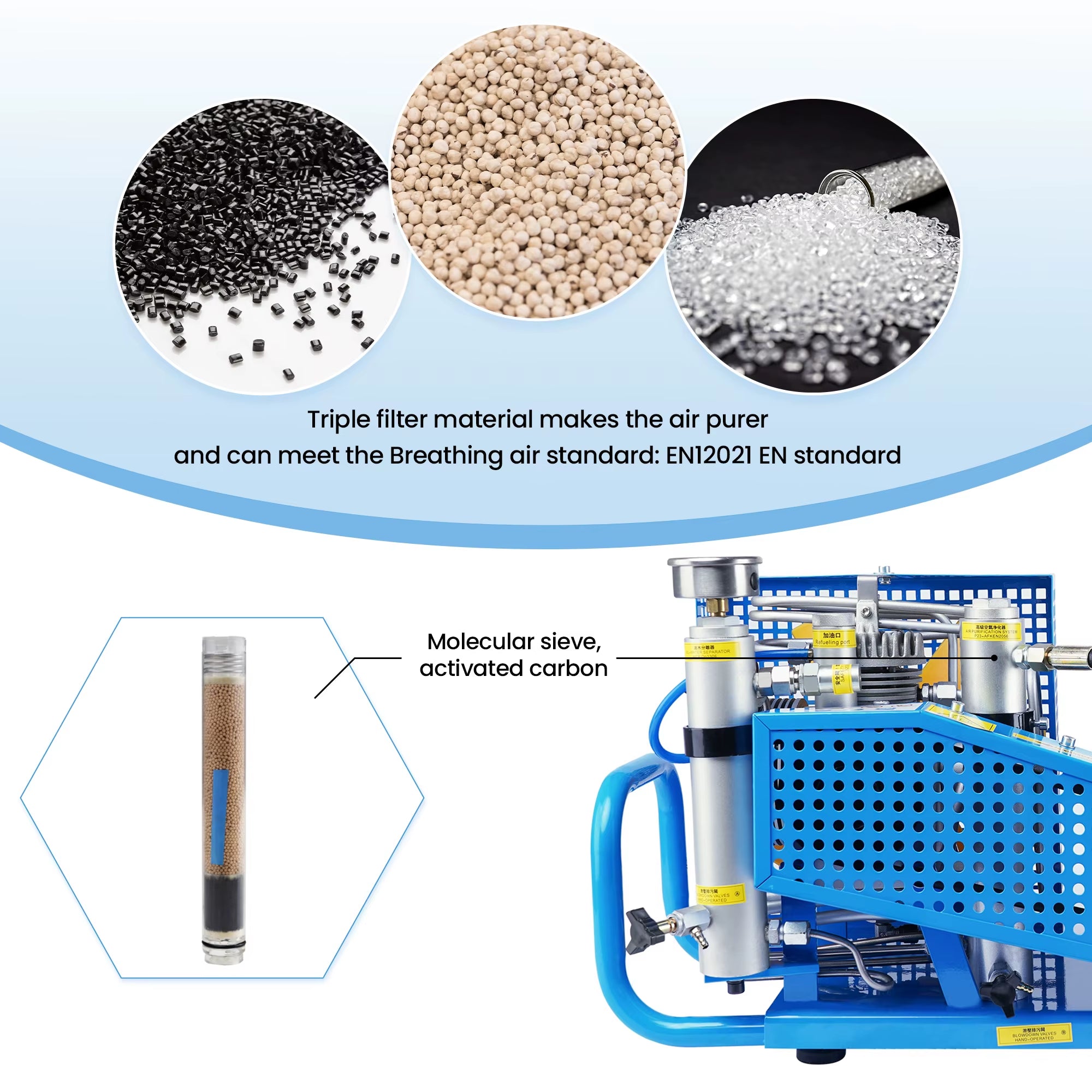

• Breathing Standards: Meets EU EN12021 and GB18435-2001 breathing air standards for pure gas source.

Application

• Industries: Diving, fire fighting, outdoor construction, pipeline welding, and container welding.

• Technical Use: Scientific research, pressure testing, and laboratory applications.

• Sporting: Suitable for PCP rifle and paintball tanks.
